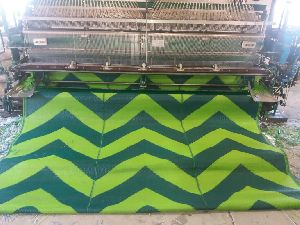

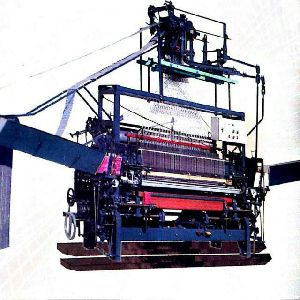

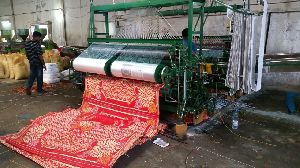

Mat Weaving Machine

Mat Weaving Machine

MOQ : 6 Set(s)

Business Type Manufacturer, Exporter, Supplier, Retailer, Wholesaler

Preferred Buyer From

Location Worldwide

Tejal Engineers is a leading Mat Weaving Machine Manufacturer. The Mat Weaving Machine requires only 0.75 hp electricity and the mat pattern can be easily changed from carpet to chume & vice versa. The Mat Weaving Machine is available in various specifications like PP Mat Weaving Machines, Plastic Mat Making Machine, Beach Mat Machine, Yoga Mat Machine etc.


Technical Features :

  • The machine is based on jacquard system in which design cards are used and any complicated design can be woven beautifully
  • Selection of color pipes depends on design cards
  • Automatic thickness adjusting mechanism for feeding warp thread from beam, hence mat length is adjustable
  • In the event pp tube is not feed to the machine,the machine stops automatically, thus giving beautiful mat without defects
  • Upper guide pipe is fitted with bearings, giving free movement for yarn feeding
  • With some changes on machine, mat pattern can be changed from carpet to chume or vice-versa.
  • One operator can operate four weaving machines at a time


Specifications :

  • Produces 80 mats of 4x6 in average in 24 hours
  • 2 extruders can feed to 3 weaving machines
  • Starting from 36 inch ( 90 cm ) width to maximum of 108 inch ( 270 cm ), width mat weaving machines, as required by customers"


Use of Machines :

  • Mat Weaving Machines : For producing beautiful woven & colored mats
  • PP Tube Extruder : For producing beautiful colored polypropylene material tubes Which afterwords are put in weaving machines for getting woven.
  • High Speed Mixer : For mixing of pp granuals with masterbatch or pigment. It also removes moisture from material if any.
  • Warping Machine : For putting yarn on bobbin from ready cones.
  • Cutting & Sealing Machine : For cutting & sealing of mats which are in the form of rolls on weaving machine.
  • Compressor : For making hollow tubes in extruder
  • Water Pump : For cooling of tubes from extruder
  • Weighing Scale : For taking tube & mat weight
Read More...


Machines Required for Mat Manufacturing Plant

Description Quantity Required Production/24 Hours/Machine Installation
(L) * (W) * (H)
Mat Weaving Machine of different sizes as 90cm width 183 cm*length 183 cm*width 183 cm length etc. (For Calculations We Assume First One) 16 Sets 100 Pieces of 90cm Width*183 cm Length 140cm*336cm*253cm
PP Tube Extruder 32 mm Size 12 Sets 100 kg 750cm*60cm*122cm
High Speed Mixer 50 kg Capacity 1 Nos 180cm*76cm*140cm
Warping Machine 1 Nos 750cm*220cm*250c
Cutting & Sealing Machine 1 Nos 150cm*180cm*90cm
Compressor 3 hp Motor 1 Nos
Water Pump 2 hp Capacity 1 Nos
Electronic Weigh Scale 2 Nos
